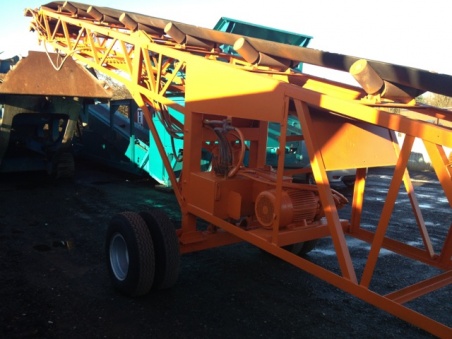

FINLAY 50-30E Conveyor SOLD

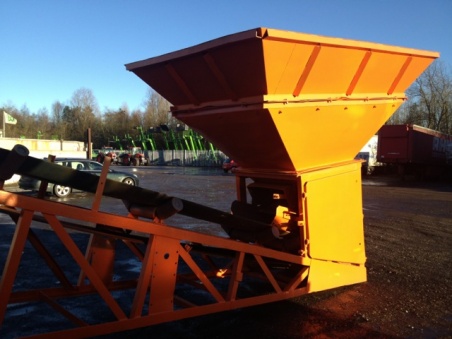

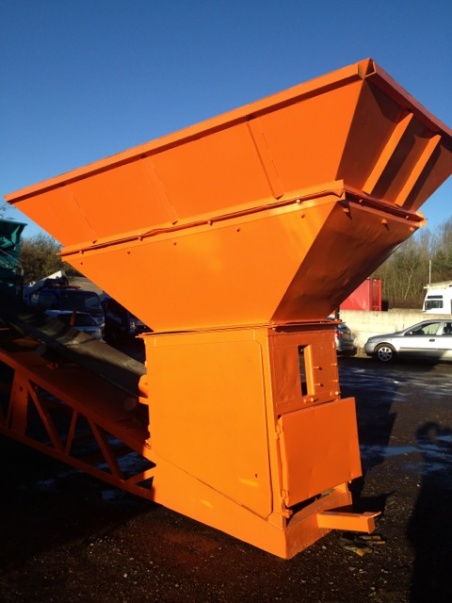

Feed hopper bowl with side extensions. Capacity up to 6 cubic metres.
Tray feeder 610 mm wide with adjustable opening to 305 mm maximum.
30" / 750 mm wide plain conveyor belt.
50 ft / 15 metres long.

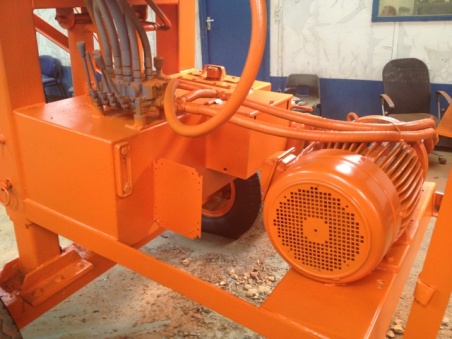

Electric hydraulic drive.

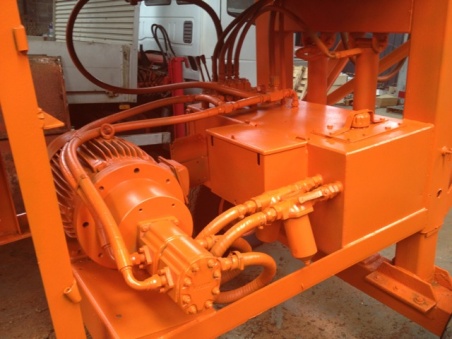

Twin hydraulic pumps.

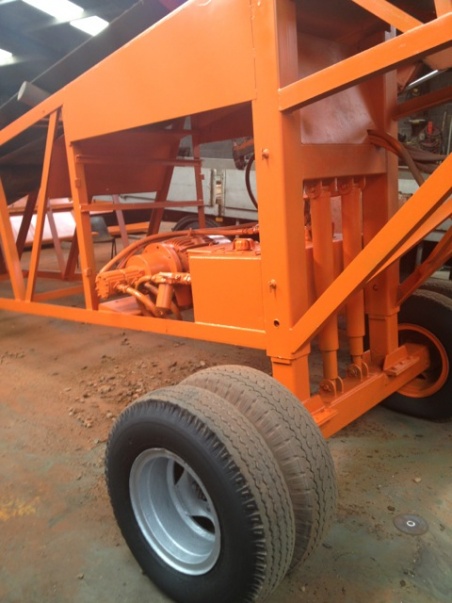

Hydraulic rams to raise and lower for conveyor height / angle.
Single axle / twin wheels.
Height of discharge when operating is 5 to 6 metres under head drum.
Rated capacity from 100 and up to 250 tonnes per hour (subject to material and conditions)
New tow bar.

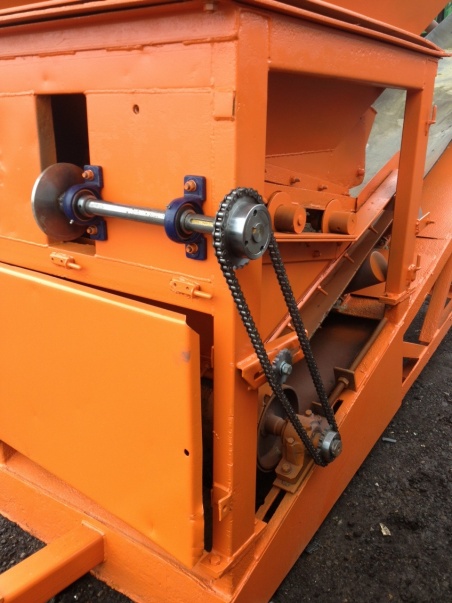

New tray feeder mechanism.
Refurbished in November 2012.
Shot-blasted and repainted.
